7KW OCPP AC EV Charging Pile Wall Mounted Charger

Name: 7KW OCPP AC EV Charging Pile Wall Mounted Charger
Brand: Essence
Price: 200 USD

China 7KW OCPP AC EV Charging Pile Wall Mounted Charger wholesale

Brand Name : Essence

Model Number : EVP7

Certification : TUV CE

Place of Origin : China

MOQ : 1

Price : USD200~400/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 20days

Packaging Details : 1units/pck

Model Nunber : EVP7

Type : AC Charger, Slow charger

Input Current : 32A

Maxium output Power : 7KW

Input Voltage : 230Vac

Charging Mode : Mode 3

Operating Temperature : -25~50C

Operating Humidity : 5~95%

Max Effeciency : 94%

Dimension : 250*139*445mm

Degree Protection : IP54

Installation : Wall Mounted

Contact Now

AC EV charger 7KW Mode 3 Charging Mode Electric Car 11kw Power Wall Mounted Ev charger

Product Parameters:

Techanical Ratings
AC Input
Connection type		U/V/W+N+PE
Input voltage		230Vac
Input frequency		50Hz±10%
Rated power		7kW
Max input current		32A
Power factor		≥0.98, Maximum value
Max. efficiency		>94%
Charging Interface
Vairant-A		Type 2 cable, 4M
Vairant-B		Type 2 socket without shutter
Charging Mode		Mode 3
HMI
Access Control		RFID, APP, CARD
LED		Operating status
Wireless network		WIFI 2.4GHz with OCPP 1.6J
Wired network		RJ45, RS485
Protocol for backend3		--
Ambient Conditions
Operating temp, range		-10°C~+50°C
Operating humidity		5-95%
Operating altitude		≤2000m
Mechanical Data
Dimension (WDH)		250139445mm
Degree of protection		IP54
Charging cable length		optional
Noise level		≤75dB
Installation		Wall Mounted
Standard and Compliance
Charging System		IEC 61851-1, IEC 62196-2
		IEC 61851-21-2, IEC 61800-2, IEC 61800-4
EMC		IEC61000-6-1 IEC61000-6-3
Certification mark		TUV CE

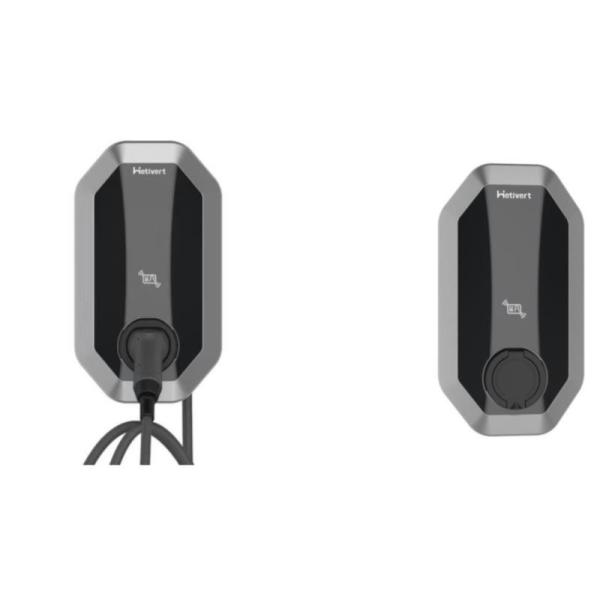

Products HD pictures:
